Morphologies

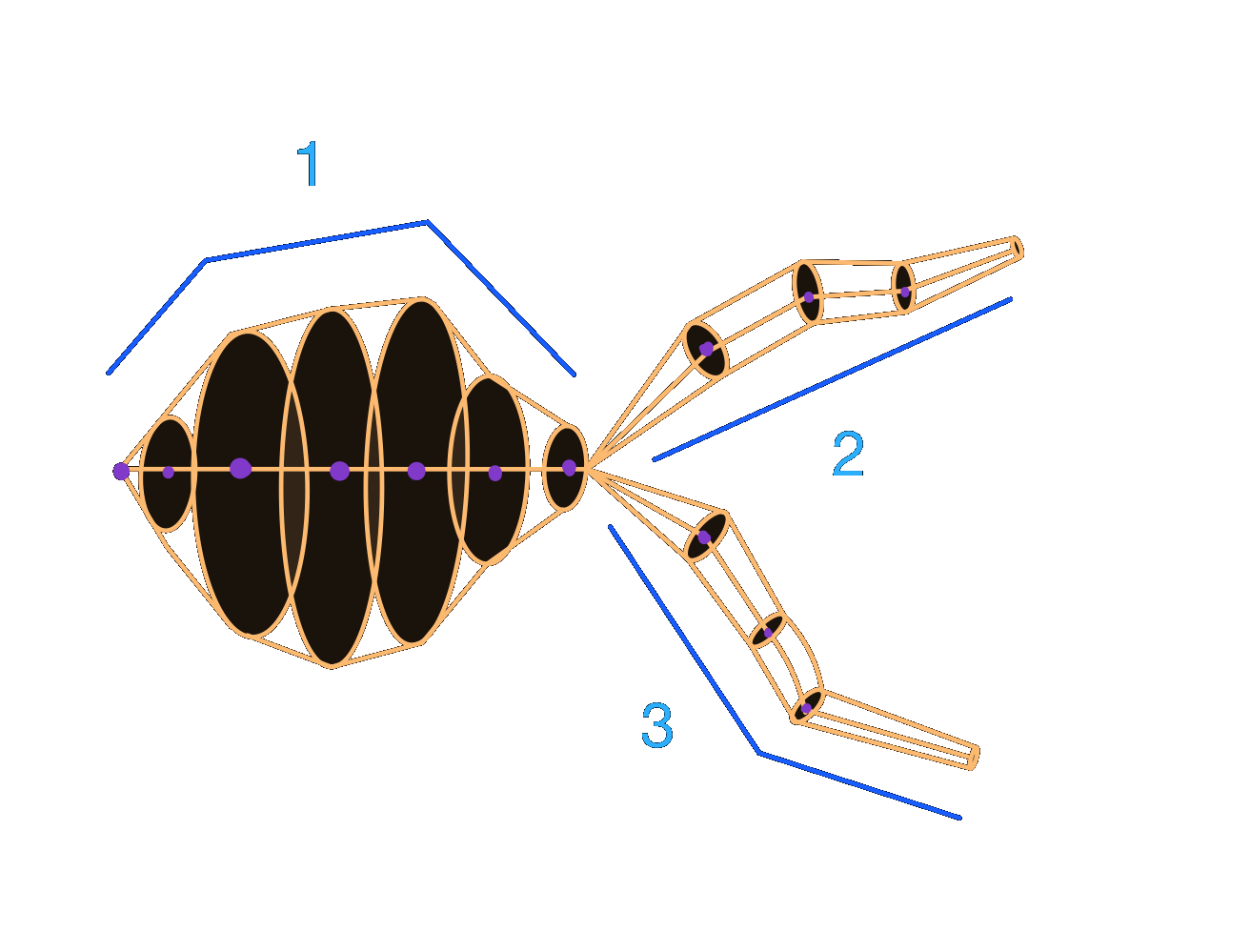

Morphologies are the 3D representation of a cell. A morphology consists of head-to-tail connected branches, and branches consist of a series of points with radii. Points can be labeled and can have multiple user-defined properties per point.

1. The root branch, shaped like a soma because of its radii.

2. A child branch of the root branch.

3. Another child branch of the root branch.

Network configurations can contain a morphologies key to define the morphologies that should be processed and assigned to cells. See Adding morphologies for a guide on the possibilities. Morphologies can be stored in a network in the bsb.storage.interfaces.MorphologyRepository.

Parsing morphologies

A morphology file can be parsed with bsb.morphologies.parsers.parse_morphology_file(), if you already have the content of a file you can pass that directly into bsb.morphologies.parsers.parse_morphology_content():

from bsb import parse_morphology_file

morpho = parse_morphology_file("./my_file.swc")

Important

The default parser only supports SWC files. Use the morphio parser for ASC files.

There are many different formats and even multiple conventions per format for parsing morphologies. To support these diverse approaches the framework provides configurable Morphology parsers. You can pass the type of parser and additional arguments:

from bsb import parse_morphology_file

morpho = parse_morphology_file("./my_file.swc", parser="morphio", flags=["no_duplicates"])

Once we have our bsb.morphologies.Morphology object we can save it in bsb.storage.Storage; storages and networks have a morphologies attribute that links to a bsb.storage.interfaces.MorphologyRepository that can save and load morphologies:

from bsb import Storage

store = Storage("hdf5", "morphologies.hdf5")
store.morphologies.save("MyCell", morpho)

Constructing morphologies

Create your branches, attach them in a parent-child relationship, and provide the roots to the bsb.morphologies.Morphology constructor:

from bsb import Branch, Morphology
import numpy as np

root = Branch(
  # XYZ
  np.array([
    [0, 1, 2],
    [0, 1, 2],
    [0, 1, 2],
  ]),
  # radius
  np.array([1, 1, 1]),
)
child_branch = Branch(
  np.array([
    [2, 3, 4],
    [2, 3, 4],
    [2, 3, 4],
  ]),
  np.array([1, 1, 1]),
)
root.attach_child(child_branch)
m = Morphology([root])

Basic use

Morphologies and branches contain spatial data in the points and radii attributes. Points can be individually labelled with arbitrary strings, and additional properties for each point can be assigned to morphologies/branches:

import numpy as np

from bsb import from_storage

# Load the morphology
network = from_storage("network.hdf5")

Once loaded we can do transformations, label or assign properties on the morphology:

print(f"Has {len(morpho)} points and {len(morpho.branches)} branches.")

# Take a branch
special_branch = morpho.branches[3]
# Assign some labels to the whole branch
special_branch.label(["axon", "special"])
# Assign labels only to the first quarter of the branch
first_quarter = np.arange(len(special_branch)) < len(special_branch) / 4
special_branch.label(["initial_segment"], first_quarter)
# Assign random data as the `random_data` property to the branch

Once you are done with the morphology you can save it again:

print(f"Random data for each point: {special_branch.random_data}")

Note

You can assign as many labels as you like (2^64 combinations max 😇)! Labels’ll cost you almost no memory or disk space! You can also add as many properties as you like, but they’ll cost you memory and disk space per point on the morphology.

Labels

Branches or points can be labelled, and pieces of the morphology can be selected by their label. Labels are also useful targets to insert biophysical mechanisms into parts of the cell later on in simulation.

import numpy as np

from bsb import from_storage

# Load the morphology
network = from_storage("network.hdf5")
morpho = network.morphologies.load("my_morphology")

# Filter branches
big_branches = [b for b in morpho.branches if np.any(b.radii > 2)]
for b in big_branches:
    # Label all points on the branch as a `big_branch` point
    b.label(["big_branch"])
    if b.is_terminal:
        # Label the last point on terminal branches as a `tip`
        b.label(["tip"], [-1])

network.morphologies.save("labelled_morphology", morpho)

Properties

Branches and morphologies can be given additional properties. The basic properties are x, y, z, radii and labels. You can pass additional properties to the properties argument of the bsb.morphologies.Branch constructor. They will be automatically joined on the morphology.

Subtree transformations

A subtree is a (sub)set of a morphology defined by a set of roots and all of its downstream branches (i.e. the branches emanating from a set of roots). A subtree with roots equal to the roots of the morphology is equal to the entire morphology, and all transformations valid on a subtree are also valid morphology transformations.

Creating subtrees

Subtrees can be selected using label(s) on the morphology.

axon = morfo.subtree("axon")
# Multiple labels can be given
hybrid = morfo.subtree("proximal", "distal")

Warning

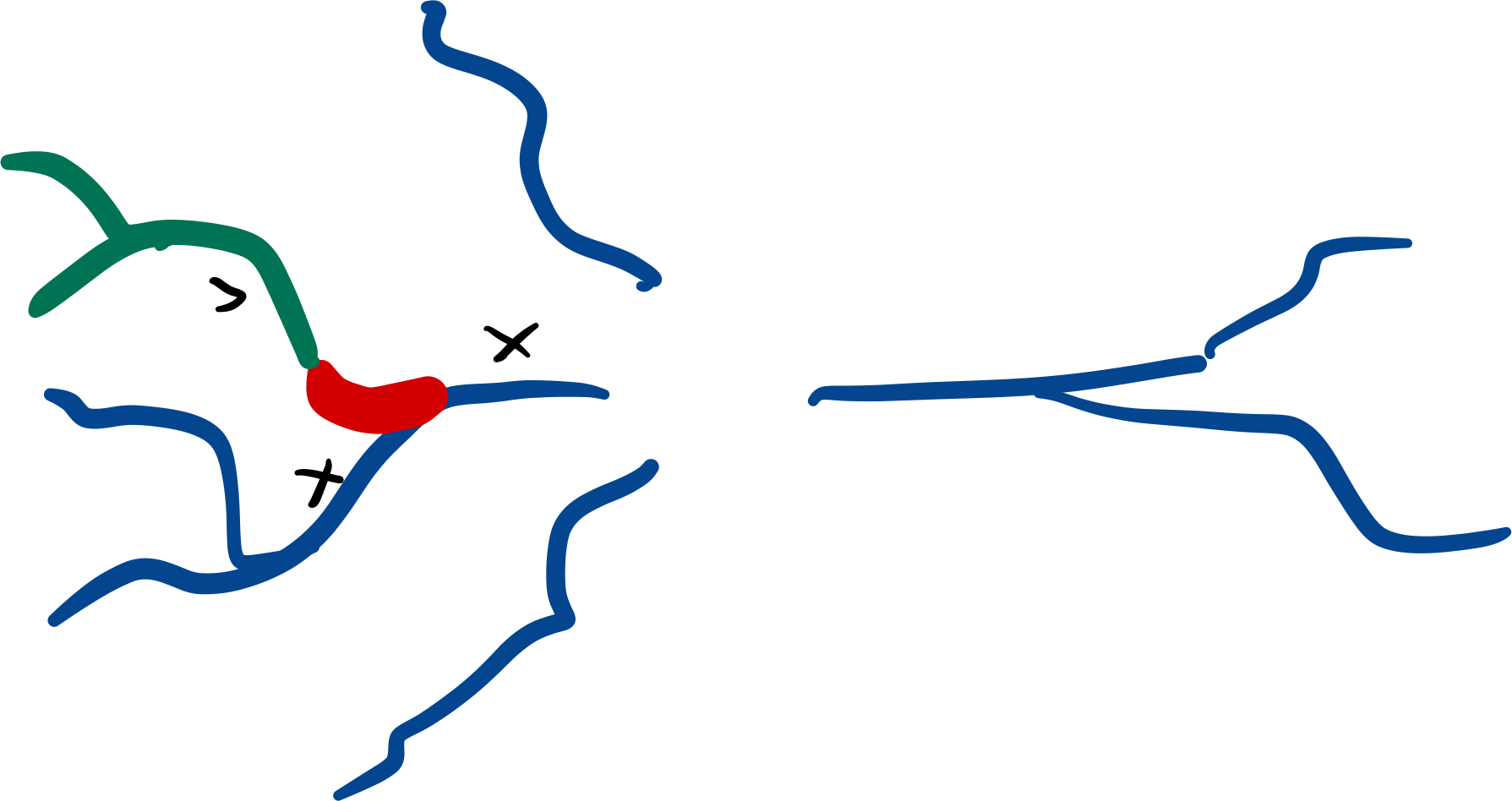

Branches will be selected as soon as they have one or more points labelled with a selected label.

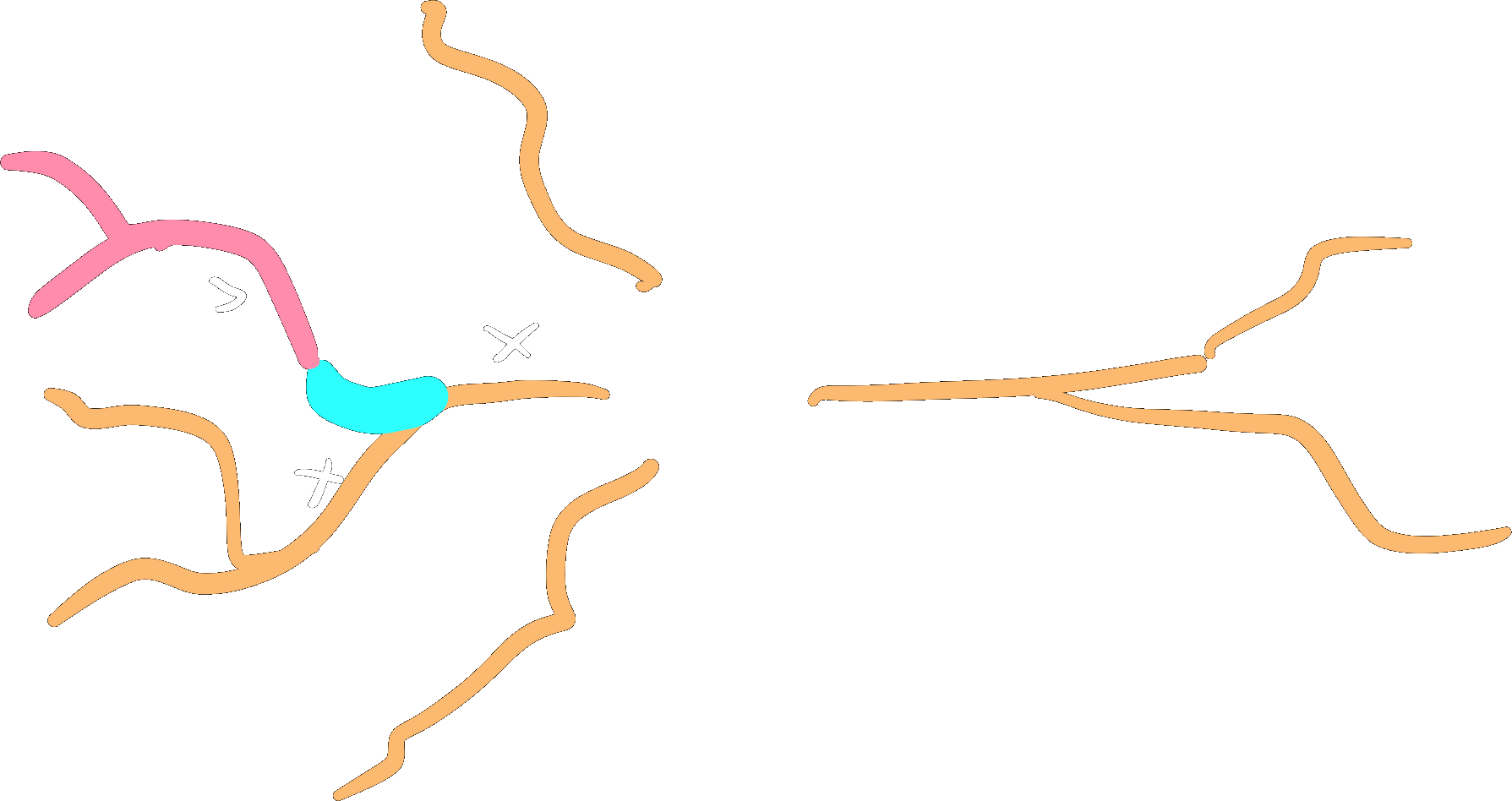

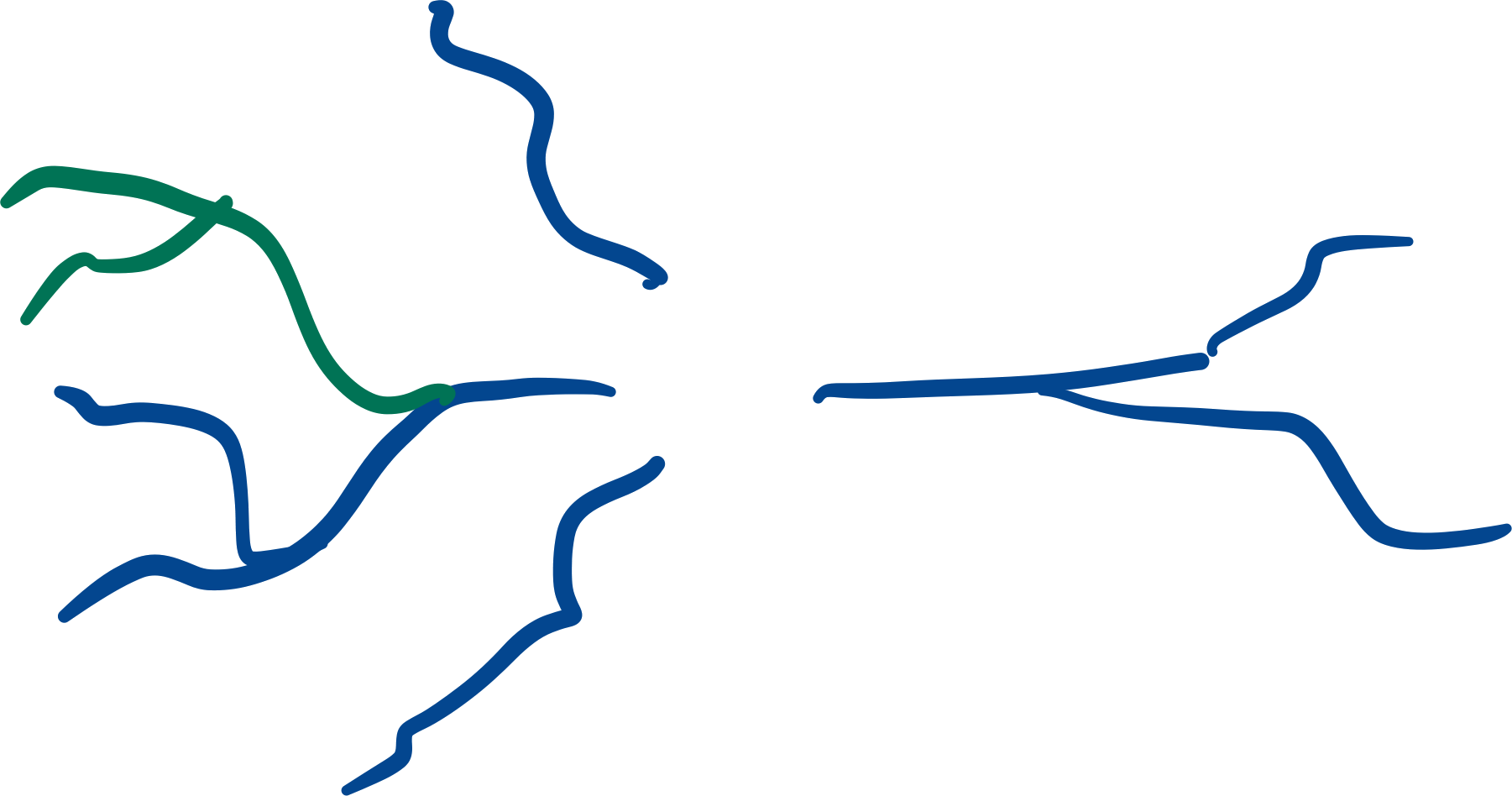

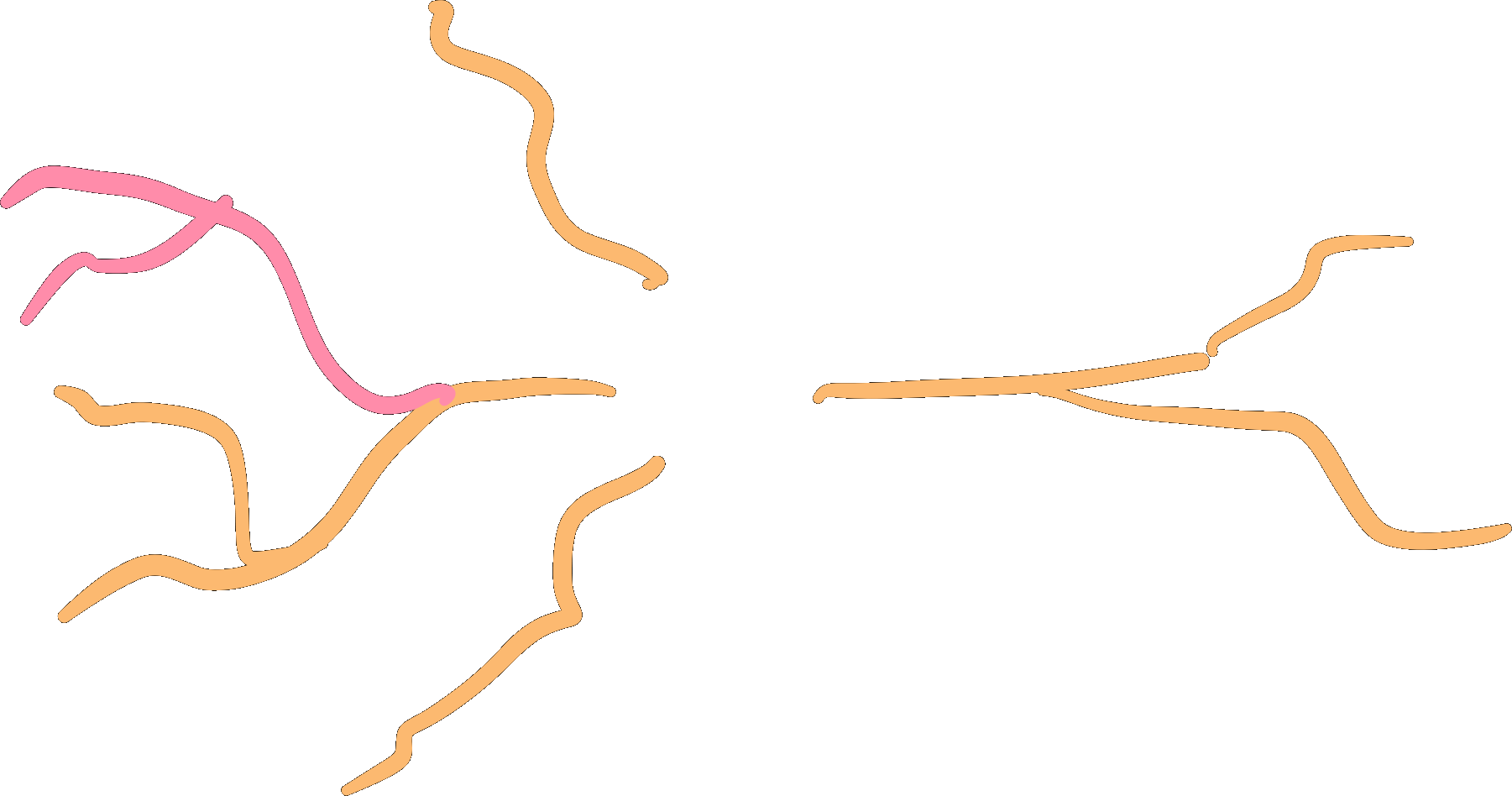

Selections will always include all the branches emanating (downtree) from the selection as well:

tuft = morfo.subtree("dendritic_piece")

Translation

axon.translate([24, 100, 0])

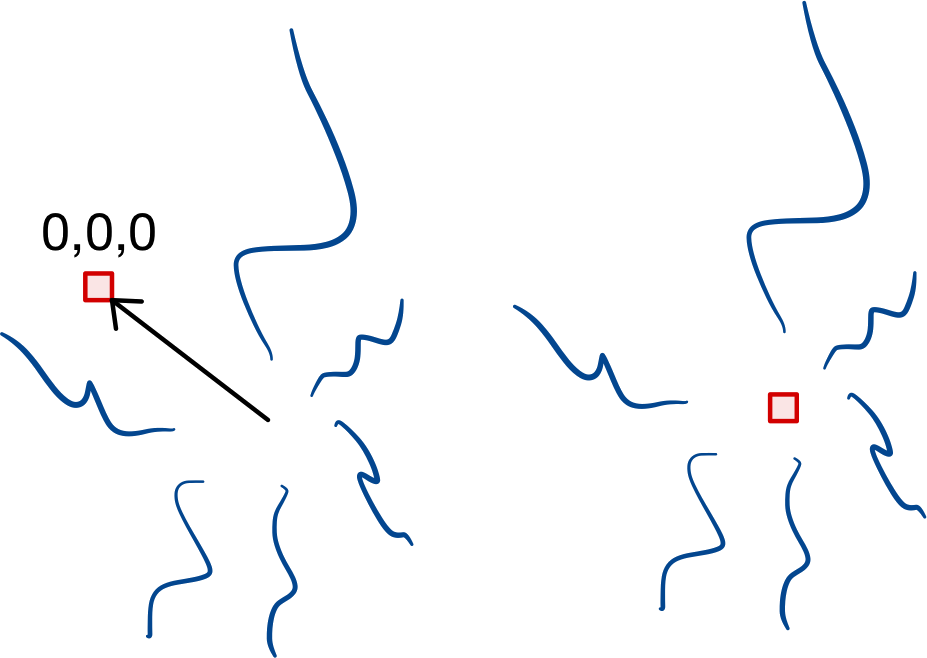

Centering

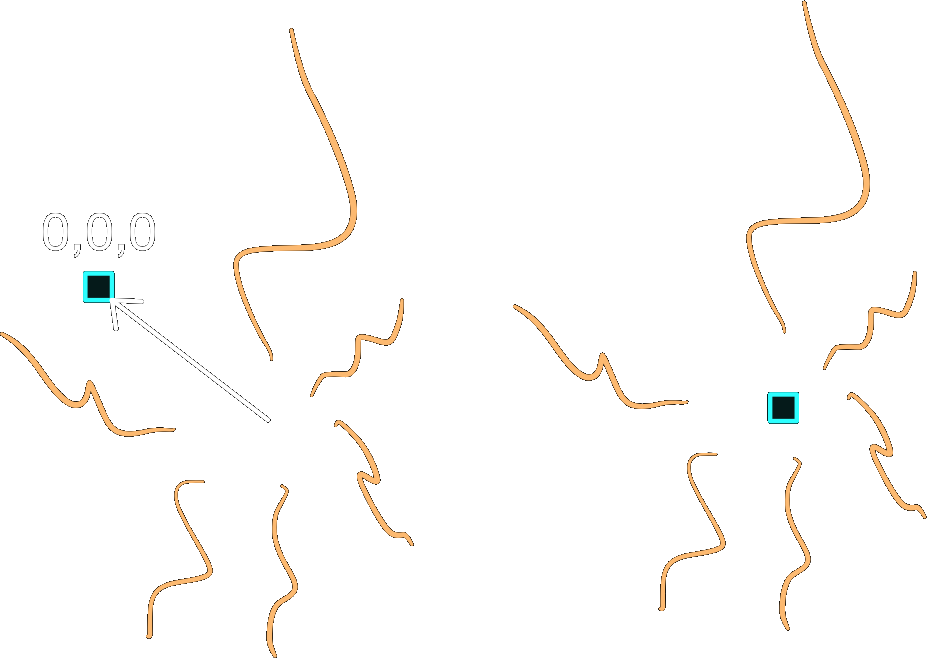

Subtrees may bsb.morphologies.SubTree.center() themselves so that the point (0, 0, 0) becomes the geometric mean of the roots.

Rotation

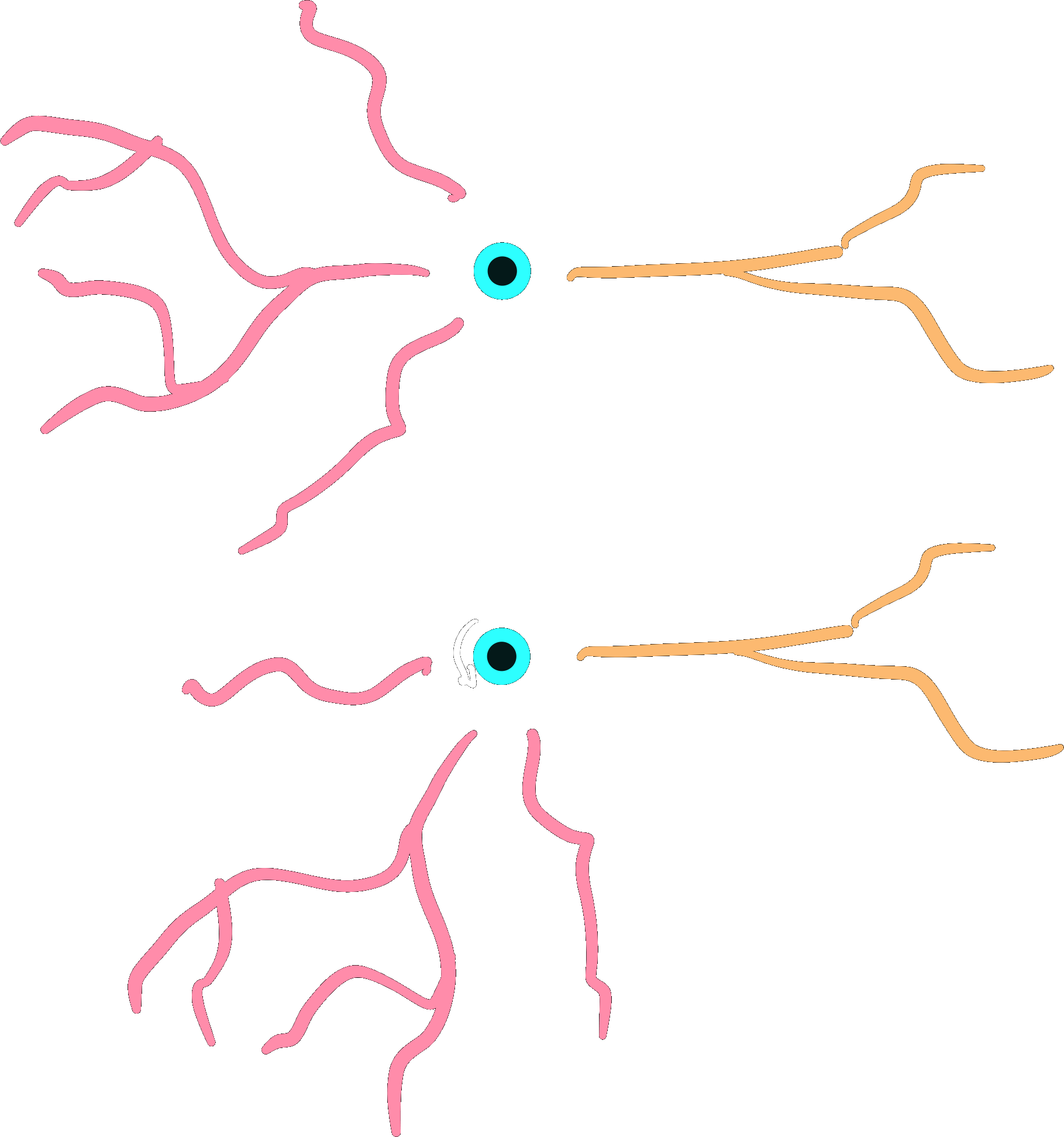

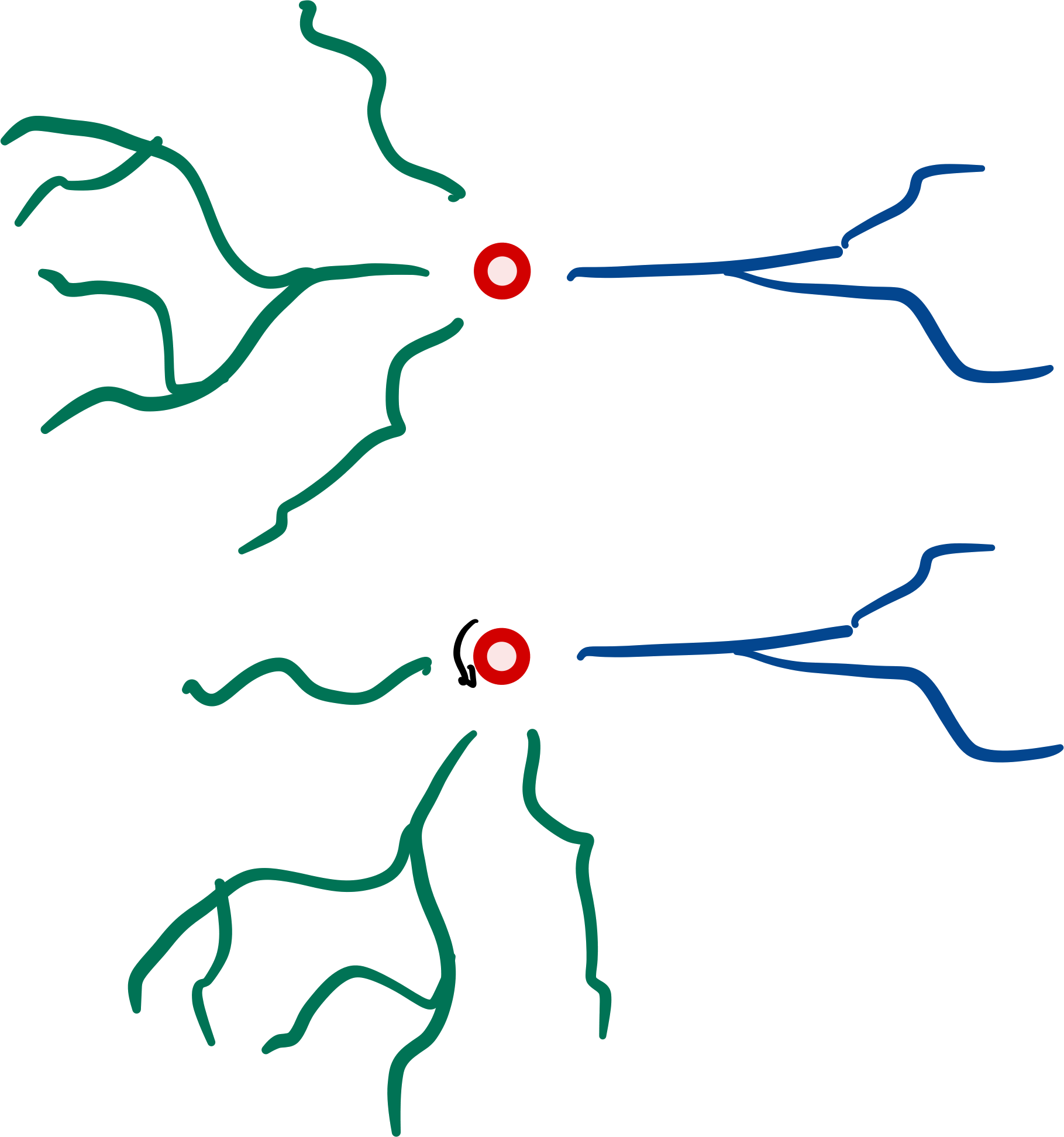

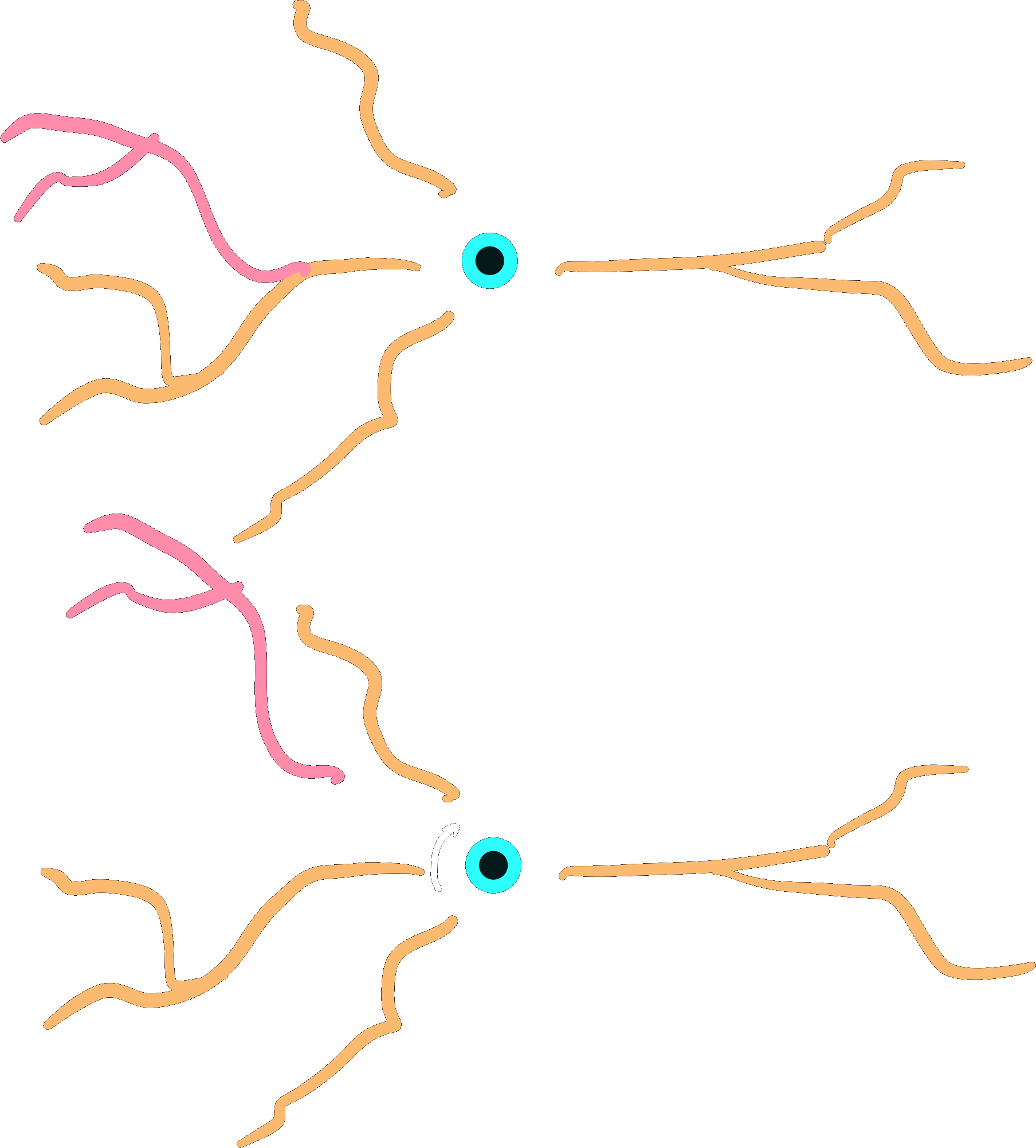

Subtrees may be rotated around a singular point, by giving a Rotation (and a center, by default 0):

from scipy.spatial.transform import Rotation

r = Rotation.from_euler("xy", [90, 90], degrees=True)
dendrites.rotate(r)

dendrite.rotate(r)

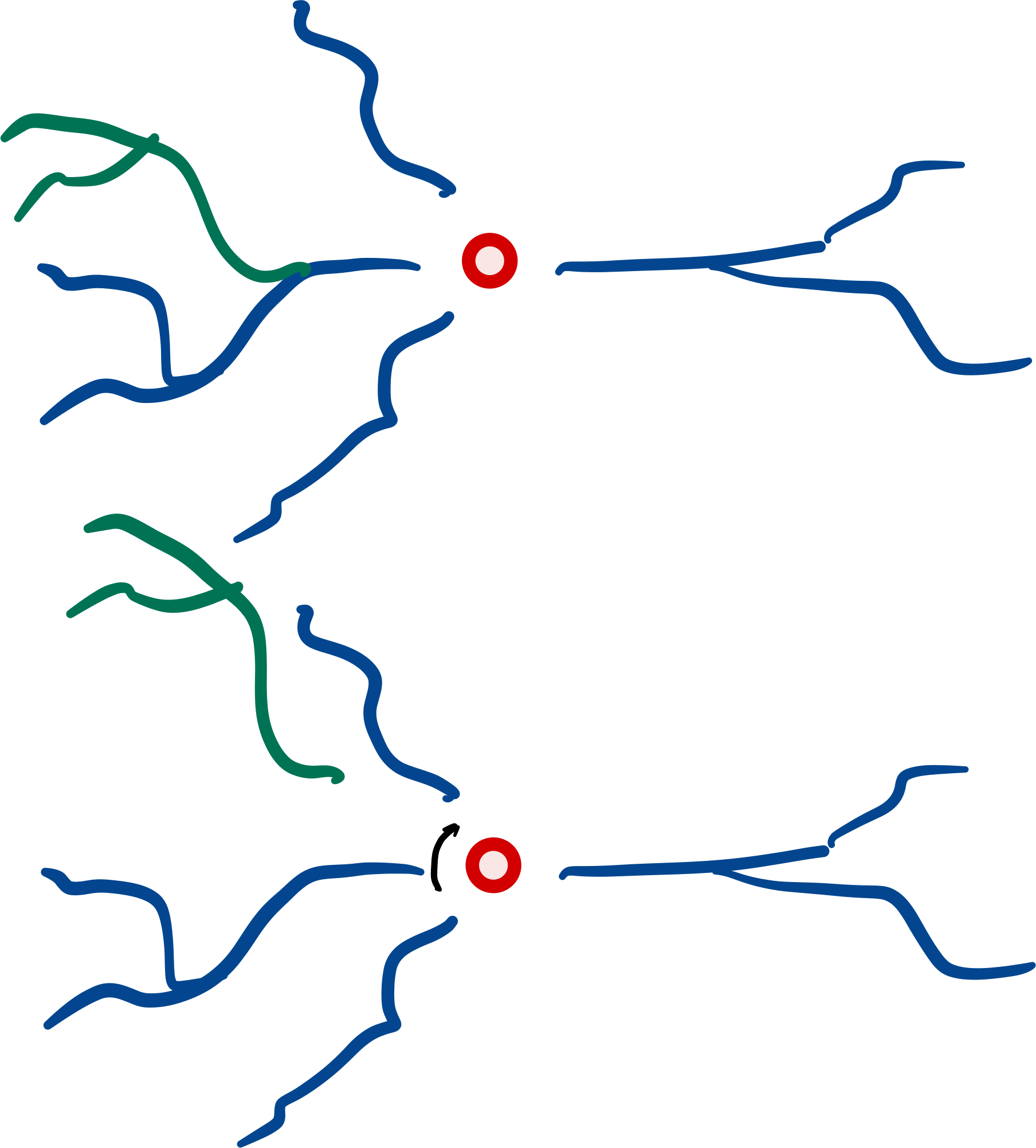

Note that this creates a gap, because we are rotating around the center, root-rotation might be preferred here.

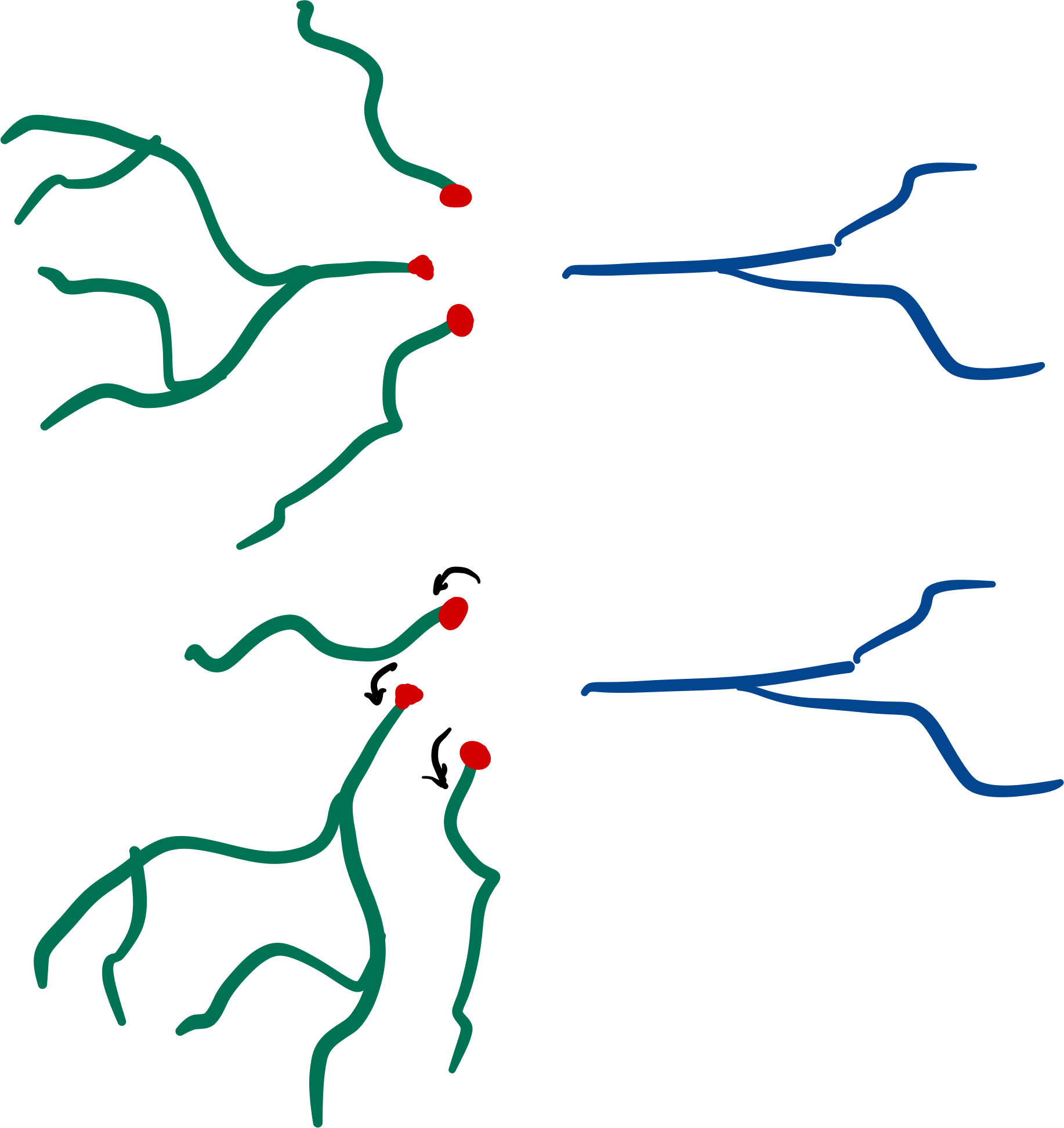

Root-rotation

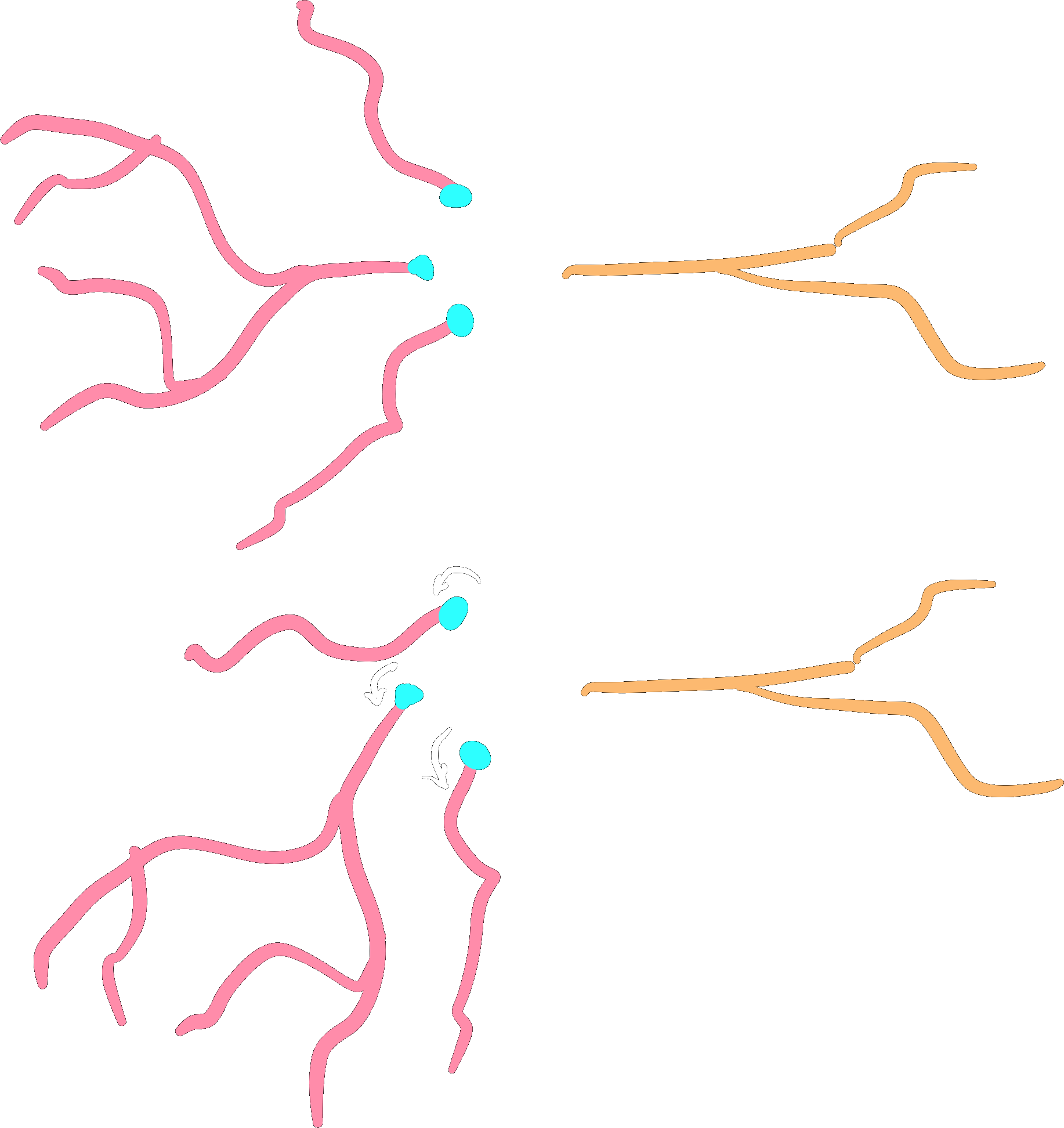

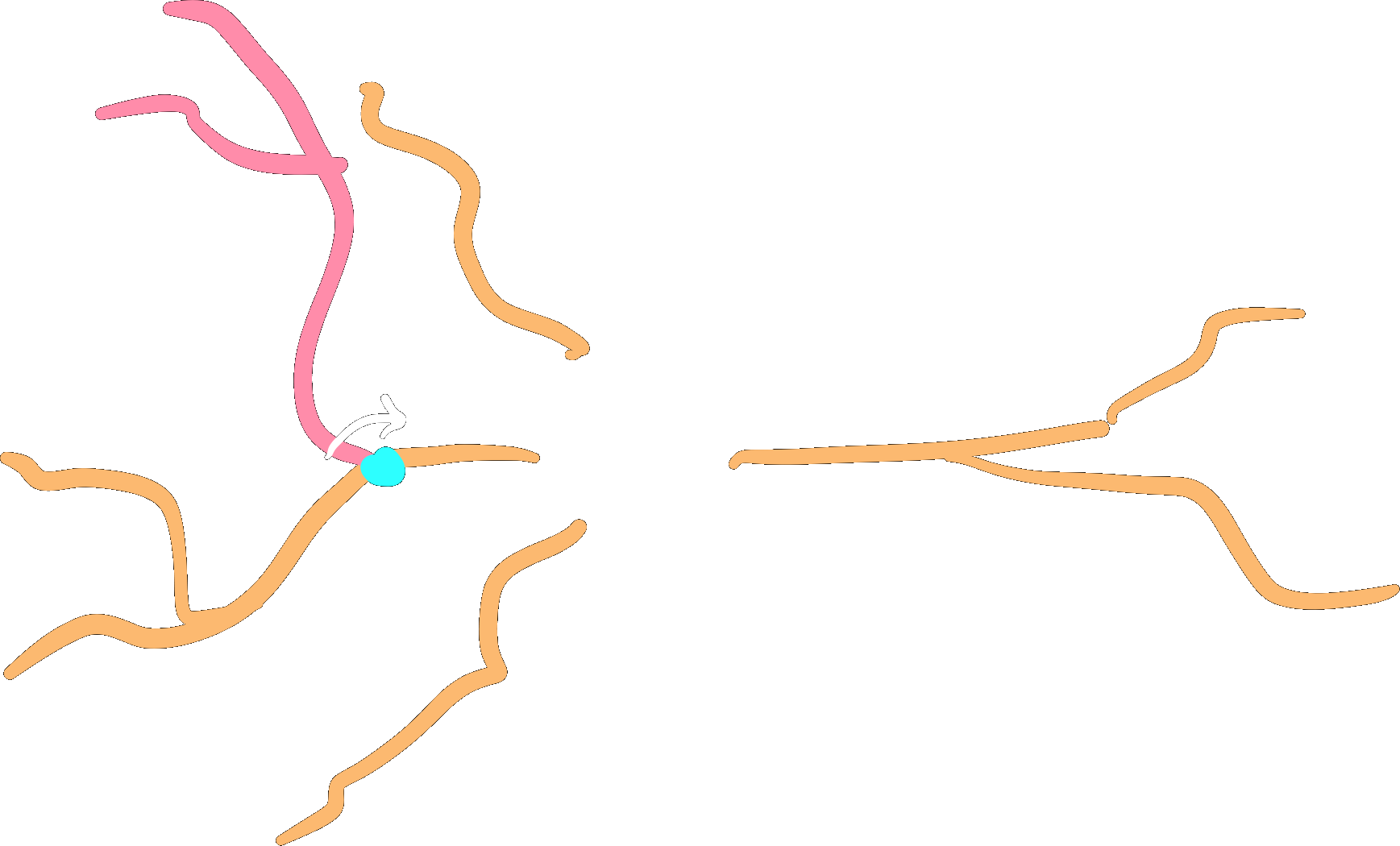

Subtrees may be root-rotated around each respective root in the tree:

dendrite.root_rotate(r)

dendrites.root_rotate(r)

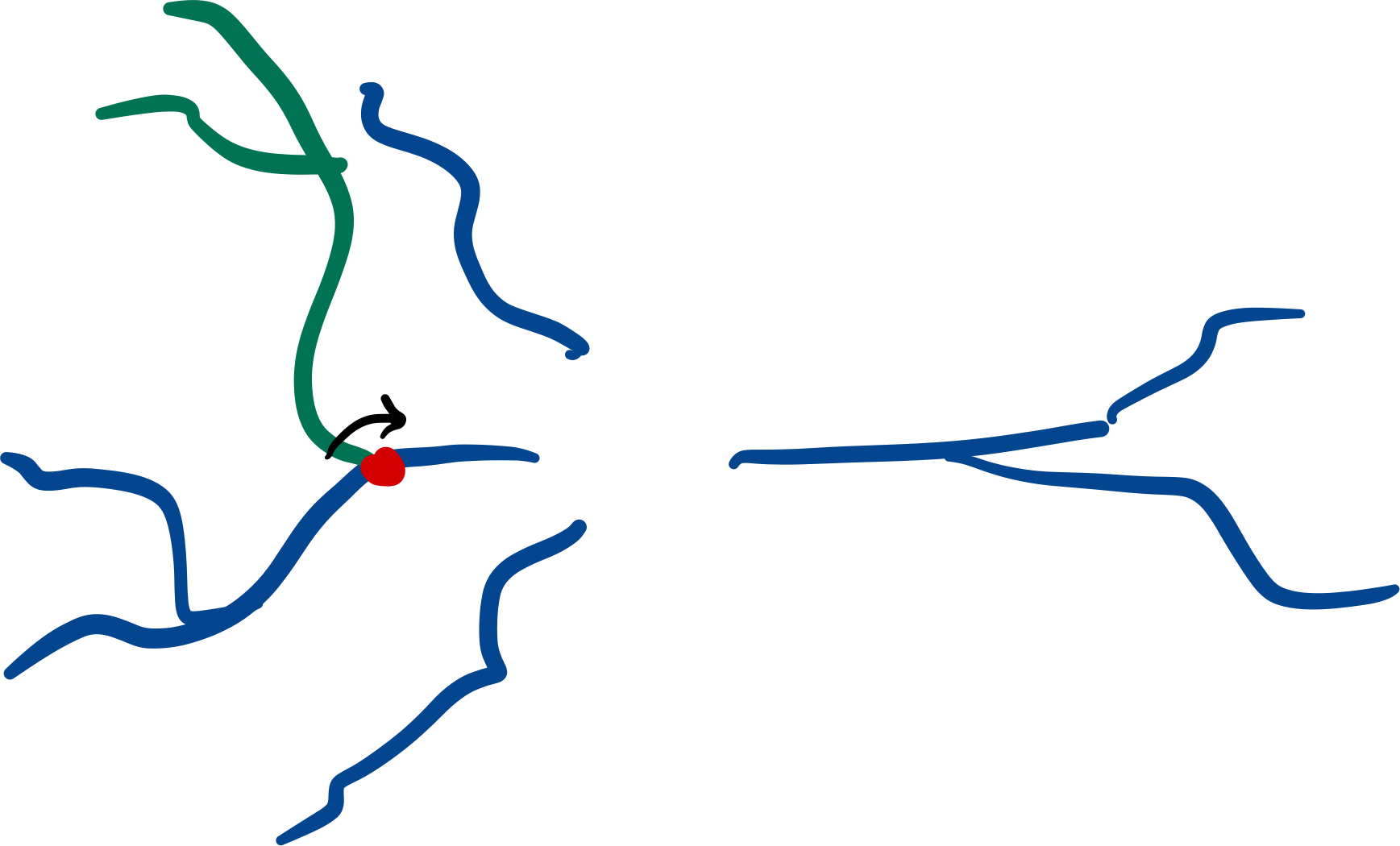

Additionally, you can root-rotate from a point of the subtree instead of its root. In this case, points starting from the point selected will be rotated.

To do so, set the downstream_of parameter with the index of the point of your interest.

# rotate all points after the second point in the subtree
# i.e.: points at index 0 and 1 will not be rotated.
dendrites.root_rotate(r, downstream_of=2)

Note

This feature can only be applied to subtrees with a single root

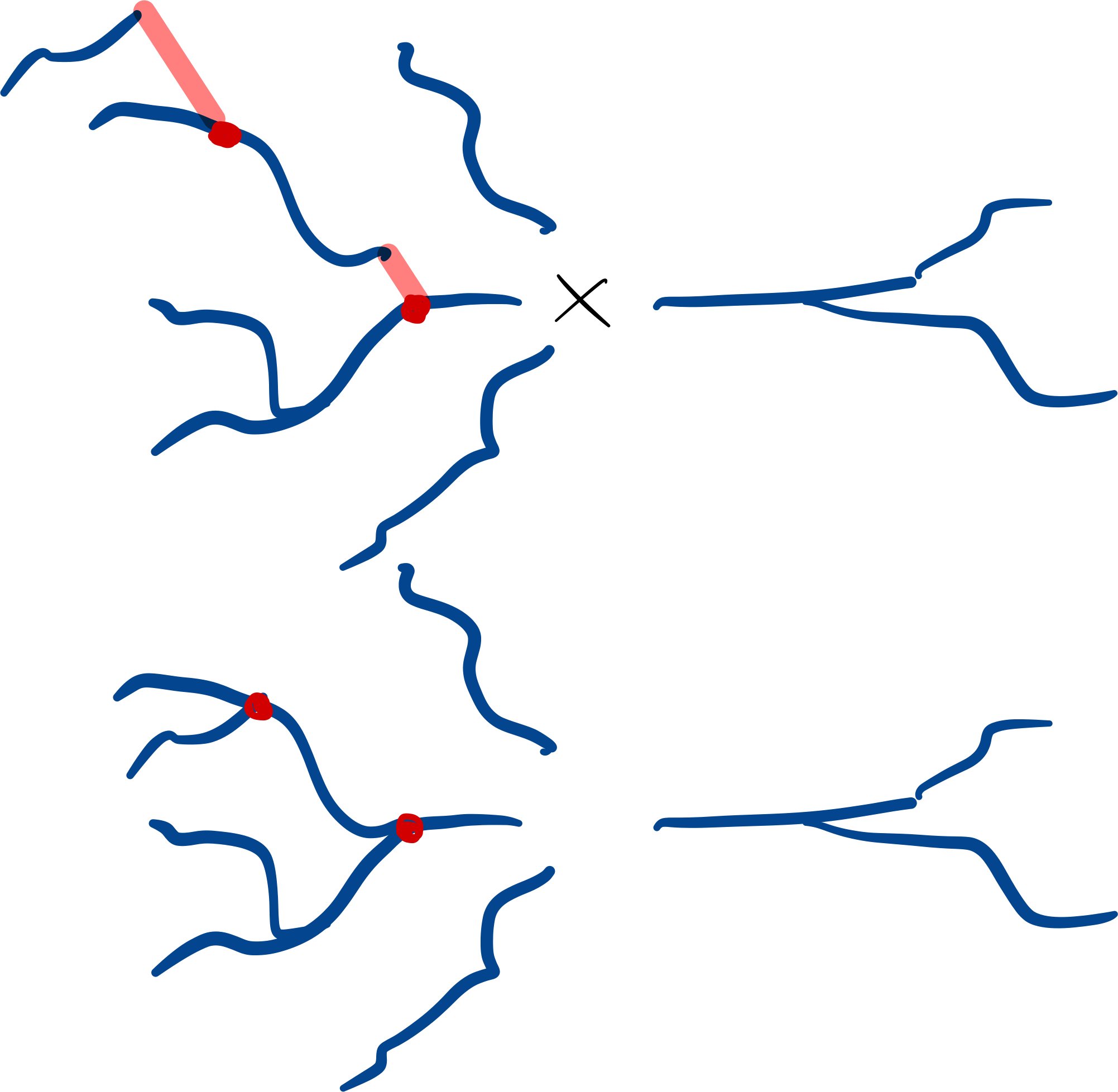

Gap closing

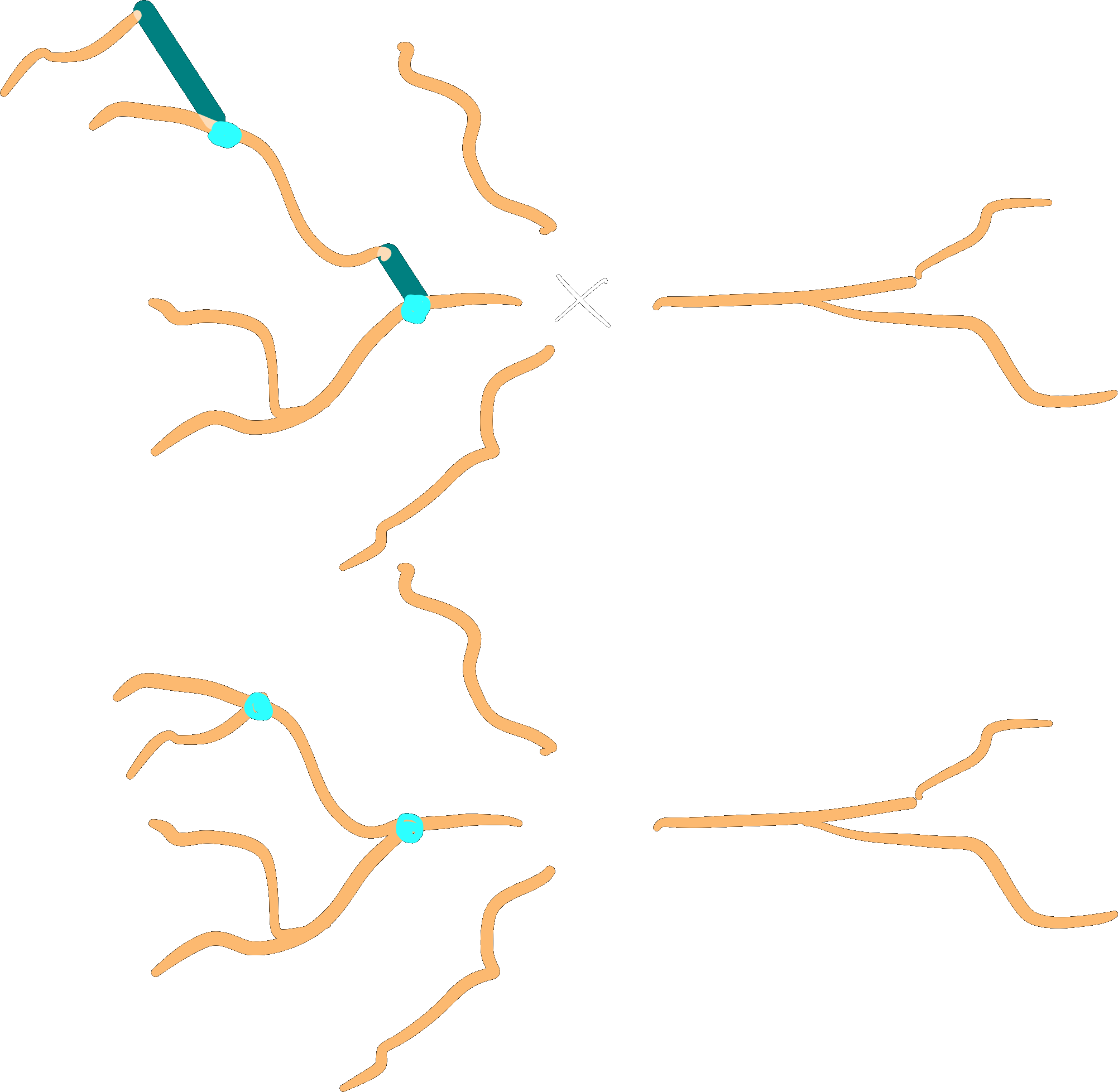

Subtree gaps between parent and child branches can be closed:

dendrites.close_gaps()

Note

The gaps between any subtree branch and its parent will be closed, even if the parent is not part of the subtree. This means that gaps of roots of a subtree may be closed as well. Gaps _between_ roots are never collapsed.

See also

Collapsing

Collapsing

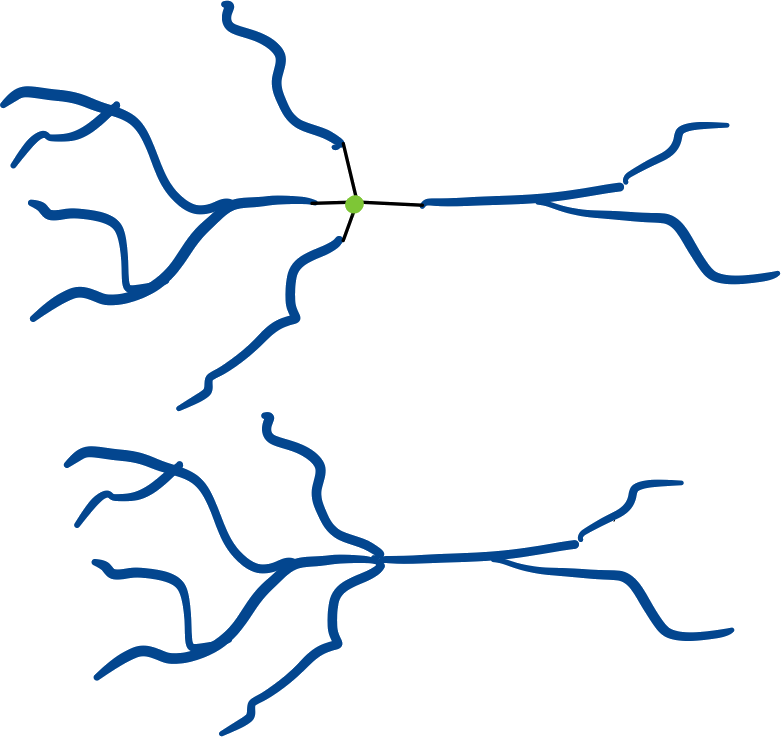

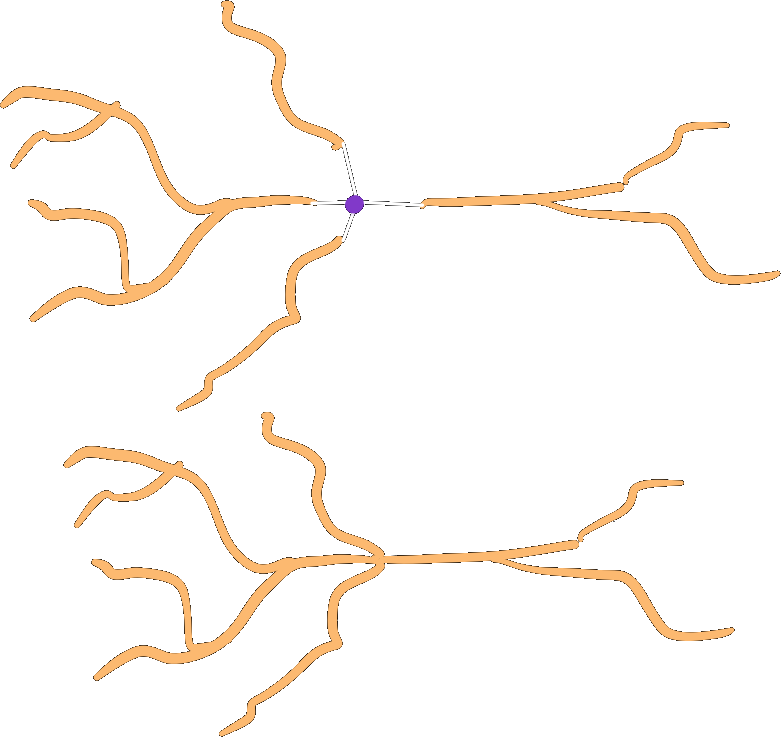

Collapse the roots of a subtree onto a single point, by default the origin.

roots.collapse()

Call chaining

Calls to any of the above functions can be chained together:

dendrites.close_gaps().center().rotate(r)

Advanced features

Morphology preloading

Reading the morphology data from the repository takes time. Usually morphologies are passed around in the framework as StoredMorphologies. These objects have a bsb.storage.interfaces.StoredMorphology.load() method to load the bsb.morphologies.Morphology object from storage and a bsb.storage.interfaces.StoredMorphology.get_meta() method to return the metadata.

Morphology selectors

The most common way of telling the framework which morphologies to use is through MorphologySelectors. Currently you can select morphologies by_name or from_neuromorpho:

JSON

"morphologies": [
  {
    "select": "by_name",
    "names": ["my_morpho_1", "all_other_*"]
  },
  {
    "select": "from_neuromorpho",
    "names": ["H17-03-013-11-08-04_692297214_m", "cell010_GroundTruth"]
  }
]

If you want to make your own selector, you should implement the bsb.morphologies.selector.MorphologySelector.validate() and bsb.morphologies.selector.MorphologySelector.pick() methods.

validate can be used to assert that all the required morphologies and metadata are present, while pick needs to return True/False to include a morphology in the selection. Both methods are handed bsb.storage.interfaces.StoredMorphology objects. Only bsb.storage.interfaces.StoredMorphology.load() morphologies if it is impossible to determine the outcome from the metadata alone.

The following example creates a morphology selector selects morphologies based on the presence of a user defined metadata "size":

from bsb import config, MorphologySelector

@config.node
class MySizeSelector(MorphologySelector, classmap_entry="by_size"):
  min_size = config.attr(type=float, default=20)
  max_size = config.attr(type=float, default=50)

  def validate(self, morphos):
    if not all("size" in m.get_meta() for m in morphos):
      raise Exception("Missing size metadata for the size selector")

  def pick(self, morpho):
    meta = morpho.get_meta()
    return meta["size"] > self.min_size and meta["size"] < self.max_size

After installing your morphology selector as a plugin, you can use by_size as selector:

JSON

{
  "cell_type_A": {
    "spatial": {
      "morphologies": [
        {
          "select": "by_size",
          "min_size": 35
        }
      ]
    }
  }
}

PYTHON

network.cell_types.cell_type_A.spatial.morphologies = [MySizeSelector(min_size=35)]

Morphology metadata

Currently unspecified, up to the Storage and MorphologyRepository support to return a dictionary of available metadata from bsb.storage.interfaces.MorphologyRepository.get_meta().

Morphology distributors

A bsb.placement.distributor.MorphologyDistributor is a special type of bsb.placement.distributor.Distributor that is called after positions have been generated by a bsb.placement.strategy.PlacementStrategy to assign morphologies, and optionally rotations. The bsb.placement.distributor.MorphologyDistributor.distribute() method is called with the partitions, the indicators for the cell type and the positions; the method has to return a bsb.morphologies.MorphologySet or a tuple together with a bsb.morphologies.RotationSet.

Warning

The rotations returned by a morphology distributor may be overruled when a bsb.placement.distributor.RotationDistributor is defined for the same placement block.

Distributor configuration

Each placement block may contain a bsb.placement.distributor.DistributorsNode, which can specify the morphology and/or rotation distributors, and any other property distributor:

JSON

{
  "placement": {
    "placement_A": {
      "strategy": "bsb.placement.RandomPlacement",
      "cell_types": ["cell_A"],
      "partitions": ["layer_A"],
      "distribute": {
        "morphologies": {
          "strategy": "roundrobin"
        }
      }
    }
  }
}

PYTHON

from bsb import RoundRobinMorphologies

network.placement.placement_A.distribute.morphologies = RoundRobinMorphologies()

Distributor interface

The generic interface has a single function: distribute(positions, context). The context contains .partitions and .indicator for additional placement context. The distributor must return a dataset of N floats, where N is the number of positions you’ve been given, so that it can be stored as an additional property on the cell type.

The morphology distributors have a slightly different interface, and receive an additional morphologies argument: distribute(positions, morphologies, context). The morphologies are a list of bsb.storage.interfaces.StoredMorphology, that the user has configured to use for the cell type under consideration and that the distributor should consider the input, or template morphologies for the operation.

The morphology distributor is supposed to return an array of N integers, where each integer refers to an index in the list of morphologies. e.g.: if there are 3 morphologies, putting a 0 on the n-th index means that cell N will be assigned morphology 0 (which is the first morphology in the list). 1 and 2 refer to the 2nd and 3rd morphology, and returning any other values would be an error.

If you need to break out of the morphologies that were handed to you, morphology distributors are also allowed to return their own bsb.morphologies.MorphologySet. Since you are free to pass any list of morphology loaders to create a morphology set, you can put and assign any morphology you like.

Tip

MorphologySets work on StoredMorphologies! This means that it is your job to save the morphologies into your network first, and to use the returned values of the save operation as input to the morphology set:

def distribute(self, positions, morphologies, context):
  # We're ignoring what is given, and make our own morphologies
  morphologies = [Morphology(...) for p in positions]
  # If we pass the `morphologies` to the `MorphologySet`, we create an error.
  # So we save the morphologies, and use the stored morphologies instead.
  loaders = [
    self.scaffold.morphologies.save(f"morpho_{i}", m)
    for i, m in enumerate(morphologies)
  ]
  return MorphologySet(loaders, np.arange(len(loaders)))

This is cumbersome, so if you plan on generating new morphologies, use a morphology generator instead.

Finally, each morphology distributor is allowed to return an additional argument to assign rotations to each cell as well. The return value must be a bsb.morphologies.RotationSet.

Warning

The rotations returned from a morphology distributor may be ignored and replaced by the values of the rotation distributor, if the user configures one.

The following example creates a distributor that selects smaller morphologies the closer the position is to the top of the partition:

import numpy as np
from scipy.stats.distributions import norm

from bsb import MorphologyDistributor


class SmallerTopMorphologies(MorphologyDistributor, classmap_entry="small_top"):
    def distribute(self, positions, morphologies, context):
        # Get the maximum Y coordinate of all the partitions boundaries
        top_of_layers = np.maximum([p.data.mdc[1] for p in context.partitions])
        depths = top_of_layers - positions[:, 1]
        # Get all the heights of the morphologies, by peeking into the morphology metadata
        msizes = [
            loader.get_meta()["mdc"][1] - loader.get_meta()["ldc"][1]
            for loader in morphologies
        ]
        # Pick deeper positions for bigger morphologies.
        weights = np.column_stack(
            [norm(loc=size, scale=20).pdf(depths) for size in msizes]
        )
        # The columns are the morphology ids, so make an arr from 0 to n morphologies.
        picker = np.arange(weights.shape[1])
        # An array to store the picked weights
        picked = np.empty(weights.shape[0], dtype=int)
        rng = np.default_rng()
        for i, p in enumerate(weights):
            # Pick a value from 0 to n, based on the weights.
            picked[i] = rng.choice(picker, p=p)
        # Return the picked morphologies for each position.
        return picked

Then, after installing your distributor as a plugin, you can use small_top:

JSON

{
  "placement": {
    "placement_A": {
      "strategy": "bsb.placement.RandomPlacement",
      "cell_types": ["cell_A"],
      "partitions": ["layer_A"],
      "distribute": {
        "morphologies": {
          "strategy": "small_top"
        }
      }
    }
  }
}

PYTHON

network.placement.placement_A.distribute.morphologies = SmallerTopMorphologies()

Morphology generators

Continuing on the morphology distributor, one can also make a specialized generator of morphologies. The generator takes the same arguments as a distributor, but returns a list of bsb.morphologies.Morphology objects, and the morphology indices to make use of them. It can also return rotations as a 3rd return value.

This example is a morphology generator that generates a simple stick that drops down to the origin for each position:

import numpy as np

from bsb import Branch, Morphology, MorphologyGenerator


class TouchTheBottomMorphologies(MorphologyGenerator, classmap_entry="touchdown"):
    def generate(self, positions, morphologies, context):
        return [
            Morphology([Branch([pos, [pos[1], 0, pos[2]]], [1, 1])])
            for pos in positions
        ], np.arange(len(positions))

Then, after installing your generator as a plugin, you can use touchdown:

JSON

{
  "placement": {
    "placement_A": {
      "strategy": "bsb.placement.RandomPlacement",
      "cell_types": ["cell_A"],
      "partitions": ["layer_A"],
      "distribute": {
        "morphologies": {
          "strategy": "touchdown"
        }
      }
    }
  }
}

PYTHON

network.placement.placement_A.distribute.morphologies = TouchTheBottomMorphologies()

MorphologySets

MorphologySets are the result of distributors assigning morphologies to placed cells. They consist of a list of StoredMorphologies, a vector of indices referring to these stored morphologies and a vector of rotations. You can use bsb.morphologies.MorphologySet.iter_morphologies() to iterate over each morphology.

ps = network.get_placement_set("my_detailed_neurons")
positions = ps.load_positions()
morphology_set = ps.load_morphologies()
rotations = ps.load_rotations()
cache = morphology_set.iter_morphologies(cache=True)
for pos, morpho, rot in zip(positions, cache, rotations):
  morpho.rotate(rot)

Reference

Morphology module.

class bsb.morphologies.Branch(points, radii, labels=None, properties=None, children=None)

A vector based representation of a series of point in space.

Can be a root or connected to a parent branch. Can be a terminal branch or have multiple children.

Parameters:

• points (list | numpy.ndarray) – Array of 3D coordinates defining the point of the branch

• radii (list | numpy.ndarray) – Array of radii associated to each point

• labels (list[str] | set | numpy.ndarray) – Array of labels to associate to each point

• properties (dict) – dictionary of per-point data to store in the branch

• children (list[bsb.morphologies.Branch]) – list of child branches to attach to the branch

Raises:

bsb.exceptions.MorphologyError – if a property of the branch does not have the same size as its points

as_arc()

Return the branch as a vector of arclengths in the closed interval [0, 1]. An arclength is the distance each point to the start of the branch along the branch axis, normalized by total branch length. A point at the start will have an arclength close to 0, and a point near the end an arclength close to 1.

Returns:

Vector of branch points as arclengths.

Return type:

numpy.ndarray

attach_child(branch)

Attach a branch as a child to this branch.

Parameters:

branch (Branch) – Child branch

cached_voxelize(N)

Turn the morphology or subtree into an approximating set of axis-aligned cuboids and cache the result.

Return type:

bsb.voxels.VoxelSet

ceil_arc_point(arc)

Get the index of the nearest distal arc point.

center()

Center the morphology on the origin.

property children

Collection of the child branches of this branch.

Returns:

list of Branches

Return type:

list

close_gaps()

Close any head-to-tail gaps between parent and child branches.

collapse(on=None)

Collapse all the roots of the morphology or subtree onto a single point.

Parameters:

on (int) – Index of the root to collapse on. Collapses onto the origin by default.

contains_labels(labels)

Check if this branch contains any points labelled with any of the given labels.

Parameters:

labels (list[str]) – The labels to check for.

Return type:

bool

copy(branch_class=None)

Return a parentless and childless copy of the branch.

Parameters:

branch_class (type) – Custom branch creation class

Returns:

A branch, or branch_class if given, without parents or children.

Return type:

bsb.morphologies.Branch

delete_point(index)

Remove a point from the branch.

Parameters:

index (int) – index position of the point to remove

Returns:

the branch where the point has been removed

Return type:

bsb.morphologies.Branch

detach()

Detach the branch from its parent, if one exists.

detach_child(branch)

Remove a branch as a child from this branch.

Parameters:

branch (Branch) – Child branch

property end

Return the spatial coordinates of the terminal point of this branch.

property euclidean_dist

Return the Euclidean distance from the start to the terminal point of this branch.

find_closest_point(coord)

Return the index of the closest on this branch to a desired coordinate.

Parameters:

coord – The coordinate to find the nearest point to

Type:

numpy.ndarray

flatten()

Return the flattened points of the morphology or subtree.

Return type:

numpy.ndarray

flatten_labels()

Return the flattened labels of the morphology or subtree.

Return type:

numpy.ndarray

flatten_properties()

Return the flattened properties of the morphology or subtree.

Return type:

numpy.ndarray

flatten_radii()

Return the flattened radii of the morphology or subtree.

Return type:

numpy.ndarray

floor_arc_point(arc)

Get the index of the nearest proximal arc point.

property fractal_dim

Return the fractal dimension of this branch, computed as the coefficient of the line fitting the log-log plot of path vs euclidean distances of its points.

get_arc_point(arc, eps=1e-10)

Strict search for an arc point within an epsilon.

Parameters:

• arc (float) – Arclength position to look for.

• eps (float) – Maximum distance/tolerance to accept an arc point as a match.

Returns:

The matched arc point index, or None if no match is found

Return type:

int | None

get_axial_distances(idx_start=0, idx_end=-1, return_max=False)

Return the displacements or its max value of a subset of branch points from its axis vector.

Parameters:

• idx_start (int) – index of the first point of the subset.

• idx_end (int) – index of the last point of the subset.

• return_max (bool) – if True the function only returns the max value of displacements, otherwise the entire array.

get_branches(labels=None)

Return a depth-first flattened array of all or the selected branches.

Parameters:

labels (list) – Names of the labels to select.

Returns:

List of all branches, or the ones fully labelled with any of the given labels.

Return type:

list

get_label_mask(labels)

Return a mask for the specified labels.

Parameters:

labels (list[str] | numpy.ndarray[str]) – The labels to check for.

Returns:

A boolean mask that selects out the points that match the label.

Return type:

list[numpy.ndarray]

get_points_labelled(labels)

Filter out all points with certain labels.

Parameters:

labels (list[str] | numpy.ndarray[str]) – The labels to check for.

Returns:

All points with the labels.

Return type:

list[numpy.ndarray]

insert_branch(branch, index)

Split this branch and insert the given branch at the specified index.

Parameters:

• branch (Branch) – Branch to be attached

• index – Index or coordinates of the cutpoint; if coordinates are given, the closest point to the coordinates is used.

Type:

numpy.ndarray | int

introduce_arc_point(arc_val)

Introduce a new point at the given arc length.

Parameters:

arc_val (float) – Arc length between 0 and 1 to introduce new point at.

Returns:

The index of the new point.

Return type:

int

introduce_point(index, position, radius=None, labels=None, properties=None)

Insert a new point at index, before the existing point at index. Radius, labels and extra properties can be set or will be copied from the existing point at index.

Parameters:

• index (int) – Index of the new point.

• position (list[float]) – Coordinates of the new point

• radius (float) – The radius to assign to the point.

• labels (list) – The labels to assign to the point.

• properties (dict) – The properties to assign to the point.

property is_root

Returns whether this branch is root or if it has a parent.

Returns:

True if this branch has no parent, False otherwise.

Return type:

bool

property is_terminal

Returns whether this branch is terminal or if it has children.

Returns:

True if this branch has no children, False otherwise.

Return type:

bool

label(labels, points=None)

Add labels to the branch.

Parameters:

• labels (list[str]) – Label(s) for the branch

• points – An integer or boolean mask to select the points to label.

property labels

Return the labels of the points on this branch.

Labels are represented as a number that is associated to a set of labels. See Labels for more info.

property labelsets

Return the sets of labels associated to each numerical label.

list_labels()

Return a list of labels present on the branch.

property max_displacement

Return the max displacement of the branch points from its axis vector.

property path_length

Return the sum of the euclidean distances between the points on the branch.

property point_vectors

Return the individual vectors between consecutive points on this branch.

property points

Return the spatial coordinates of the points on this branch.

property radii

Return the radii of the points on this branch.

root_rotate(rot, downstream_of=0)

Rotate the subtree emanating from each root around the start of that root If downstream_of is provided, will rotate points starting from the index provided (only for subtrees with a single root).

Parameters:

• rot (scipy.spatial.transform.Rotation) – Scipy rotation to apply to the subtree.

• downstream_of – index of the point in the subtree from which the rotation should be applied. This feature works only when the subtree has only one root branch.

Returns:

rotated Morphology

Return type:

bsb.morphologies.SubTree

rotate(rotation, center=None)

Rotate the entire Subtree with respect to the center. The rotation angles are assumed to be in degrees. If the center is not provided, the Subtree will rotate from [0, 0, 0].

Parameters:

• rotation (scipy.spatial.transform.Rotation | list[float,float,float]) – Scipy rotation

• center (numpy.ndarray) – rotation offset point.

property segments

Return the start and end points of vectors between consecutive points on this branch.

simplify(epsilon, idx_start=0, idx_end=-1)

Apply Ramer–Douglas–Peucker algorithm to all points or a subset of points of the branch.

Parameters:

epsilon – Epsilon to be used in the algorithm. :param idx_start = 0: Index of the first element of the subset of points to be reduced. :param epsilon = -1: Index of the last element of the subset of points to be reduced.

simplify_branches(epsilon)

Apply Ramer–Douglas–Peucker algorithm to all points of all branches of the SubTree.

Parameters:

epsilon – Epsilon to be used in the algorithm.

property size

Returns the amount of points on this branch.

Returns:

Number of points on the branch.

Return type:

int

property start

Return the spatial coordinates of the starting point of this branch.

translate(point)

Translate the subtree by a 3D vector.

Parameters:

point (numpy.ndarray) – 3D vector to translate the subtree.

Returns:

the translated subtree

Return type:

bsb.morphologies.SubTree

property vector

Return the vector of the axis connecting the start and terminal points.

property versor

Return the normalized vector of the axis connecting the start and terminal points.

voxelize(N)

Turn the morphology or subtree into an approximating set of axis-aligned cuboids.

Return type:

bsb.voxels.VoxelSet

walk()

Iterate over the points in the branch.

class bsb.morphologies.Morphology(roots, meta=None, shared_buffers=None, sanitize=False)

A multicompartmental spatial representation of a cell based on a directed acyclic graph of branches whom consist of data vectors, each element of a vector being a coordinate or other associated data of a point on the branch.

property adjacency_dictionary

Return a dictonary associating to each key (branch index) a list of adjacent branch indices.

as_filtered(labels=None)

Return a filtered copy of the morphology that includes only points that match the current label filter, or the specified labels.

copy()

Copy the morphology.

get_label_mask(labels)

Get a mask corresponding to all the points labelled with 1 or more of the given labels.

property labelsets

Return the sets of labels associated to each numerical label.

list_labels()

Return a list of labels present on the morphology.

set_label_filter(labels)

Set a label filter, so that as_filtered returns copies filtered by these labels.

swap_axes(axis1: int, axis2: int)

Interchange two axes of a morphology points.

Parameters:

• axis1 (int) – index of the first axis to exchange

• axis2 (int) – index of the second axis to exchange

Returns:

the modified morphology

Return type:

bsb.morphologies.Morphology

to_graph_array()

Create a SWC-like numpy array from a Morphology.

Warning

Custom SWC tags (above 3) won’t work and throw an error

Returns:

a numpy array with columns storing the standard SWC attributes

Return type:

numpy.ndarray

to_swc(file)

Create a SWC file from a Morphology.

Parameters:

file – path to write to

class bsb.morphologies.MorphologySet(loaders, m_indices=None, /, labels=None)

Associates a set of StoredMorphologies to cells.

Parameters:

• loaders (list[Callable[[], bsb.storage.interfaces.StoredMorphology]]) – list of Morphology loader functions.

• m_indices – indices of the loaders for each of the morphologies.

Type:

list[int]

iter_morphologies(cache=True, unique=False, hard_cache=False)

Iterate over the morphologies in a MorphologySet with full control over caching.

Parameters:

• cache (bool) – Use Soft caching (1 copy stored in mem per cache miss, 1 copy created from that per cache hit).

• hard_cache – Use Hard caching (1 copy stored on the loader, always same copy returned from that loader forever).

class bsb.morphologies.RotationSet(data)

Set of rotations.

Returned rotations are of scipy.spatial.transform.Rotation

class bsb.morphologies.SubTree(branches, sanitize=True)

Collection of branches, not necessarily all connected.

property branch_adjacency

Return a dictionary containing mapping the id of the branch to its children.

property branches

Return a depth-first flattened array of all branches.

cached_voxelize(N)

Turn the morphology or subtree into an approximating set of axis-aligned cuboids and cache the result.

Return type:

bsb.voxels.VoxelSet

center()

Center the morphology on the origin.

close_gaps()

Close any head-to-tail gaps between parent and child branches.

collapse(on=None)

Collapse all the roots of the morphology or subtree onto a single point.

Parameters:

on (int) – Index of the root to collapse on. Collapses onto the origin by default.

flatten()

Return the flattened points of the morphology or subtree.

Return type:

numpy.ndarray

flatten_labels()

Return the flattened labels of the morphology or subtree.

Return type:

numpy.ndarray

flatten_properties()

Return the flattened properties of the morphology or subtree.

Return type:

numpy.ndarray

flatten_radii()

Return the flattened radii of the morphology or subtree.

Return type:

numpy.ndarray

get_branches(labels=None)

Return a depth-first flattened array of all or the selected branches.

Parameters:

labels (list) – Names of the labels to select.

Returns:

List of all branches, or the ones fully labelled with any of the given labels.

Return type:

list

label(labels, points=None)

Add labels to the morphology or subtree.

Parameters:

• labels (list[str]) – Labels to add to the subtree.

• points (numpy.ndarray) – Optional boolean or integer mask for the points to be labelled.

property path_length

Return the total path length as the sum of the euclidian distances between consecutive points.

root_rotate(rot, downstream_of=0)

Rotate the subtree emanating from each root around the start of that root If downstream_of is provided, will rotate points starting from the index provided (only for subtrees with a single root).

Parameters:

• rot (scipy.spatial.transform.Rotation) – Scipy rotation to apply to the subtree.

• downstream_of – index of the point in the subtree from which the rotation should be applied. This feature works only when the subtree has only one root branch.

Returns:

rotated Morphology

Return type:

bsb.morphologies.SubTree

rotate(rotation, center=None)

Rotate the entire Subtree with respect to the center. The rotation angles are assumed to be in degrees. If the center is not provided, the Subtree will rotate from [0, 0, 0].

Parameters:

• rotation (scipy.spatial.transform.Rotation | list[float,float,float]) – Scipy rotation

• center (numpy.ndarray) – rotation offset point.

simplify_branches(epsilon)

Apply Ramer–Douglas–Peucker algorithm to all points of all branches of the SubTree.

Parameters:

epsilon – Epsilon to be used in the algorithm.

translate(point)

Translate the subtree by a 3D vector.

Parameters:

point (numpy.ndarray) – 3D vector to translate the subtree.

Returns:

the translated subtree

Return type:

bsb.morphologies.SubTree

voxelize(N)

Turn the morphology or subtree into an approximating set of axis-aligned cuboids.

Return type:

bsb.voxels.VoxelSet

bsb.morphologies.branch_iter(branch)

Iterate over a branch and all of its children depth first.
